Automatic Collar Joining Machine

HYT-1001A

This equipment is used to join a single strip fabric into a collar. Four processes can be selected for production according to requirements. It only needs to loaded a stack of fabric manually, and followed by automatic picking, feeding, sewing and stacking. No any other manually operation needed while the production proceeding except loading, which is fully automated production, saving labor and improving the quality of product.
Contact Us
Details
Advantage
Video

APPLICATION

Applicable to 1X1 rib fabric and 2X2 rib fabric.

ApplicationPartial pictureHYT-1001A
1X1 rib fabric

2X2 rib fabric



SPECIFICATION

height360mm
cutting size400-600mm (length), 40-70mm (width)
voltage220V
vacuum pressure0.5Mpa
power600W
dimension1160*1120*1600mm
electricity15A
weight300kg
decibel80dB


FEATURES

FEATURESPartial picture

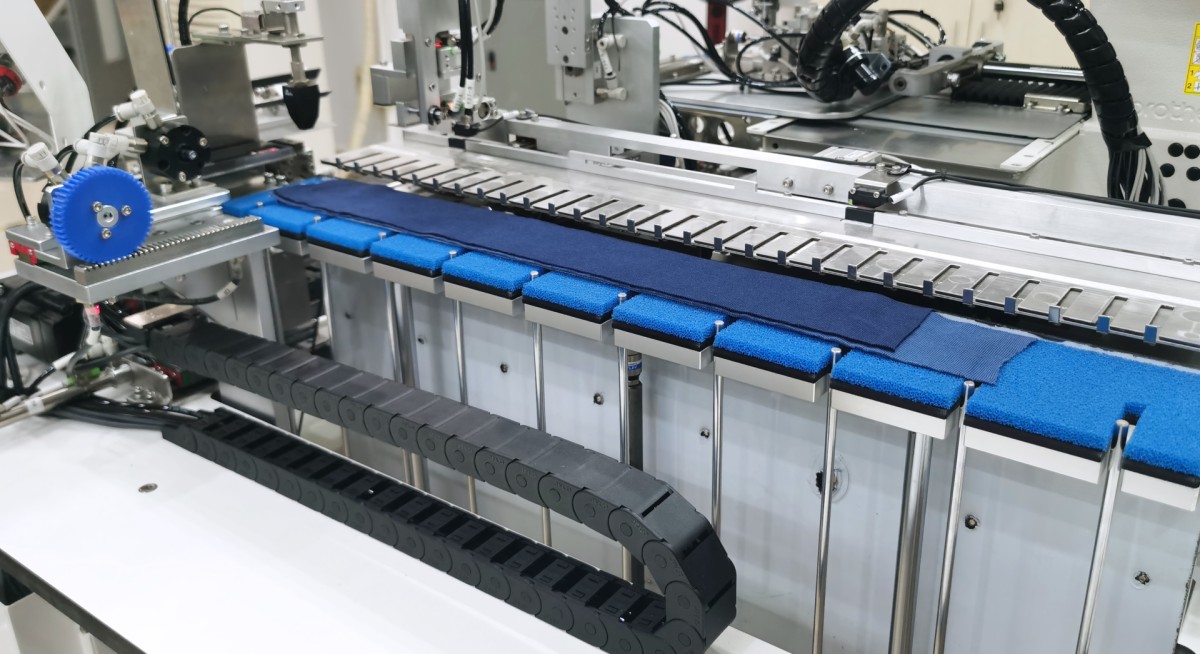

Stack loading, automatic edge aligned.

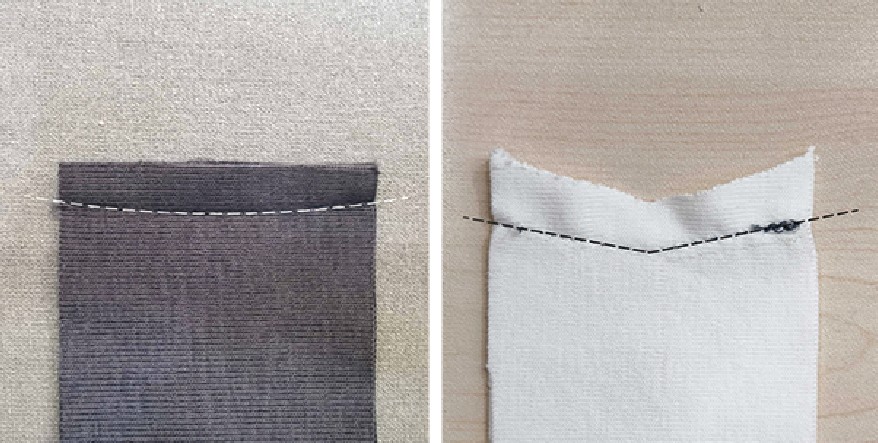

Curved stitching, neatly folded.
Easy to changeover.

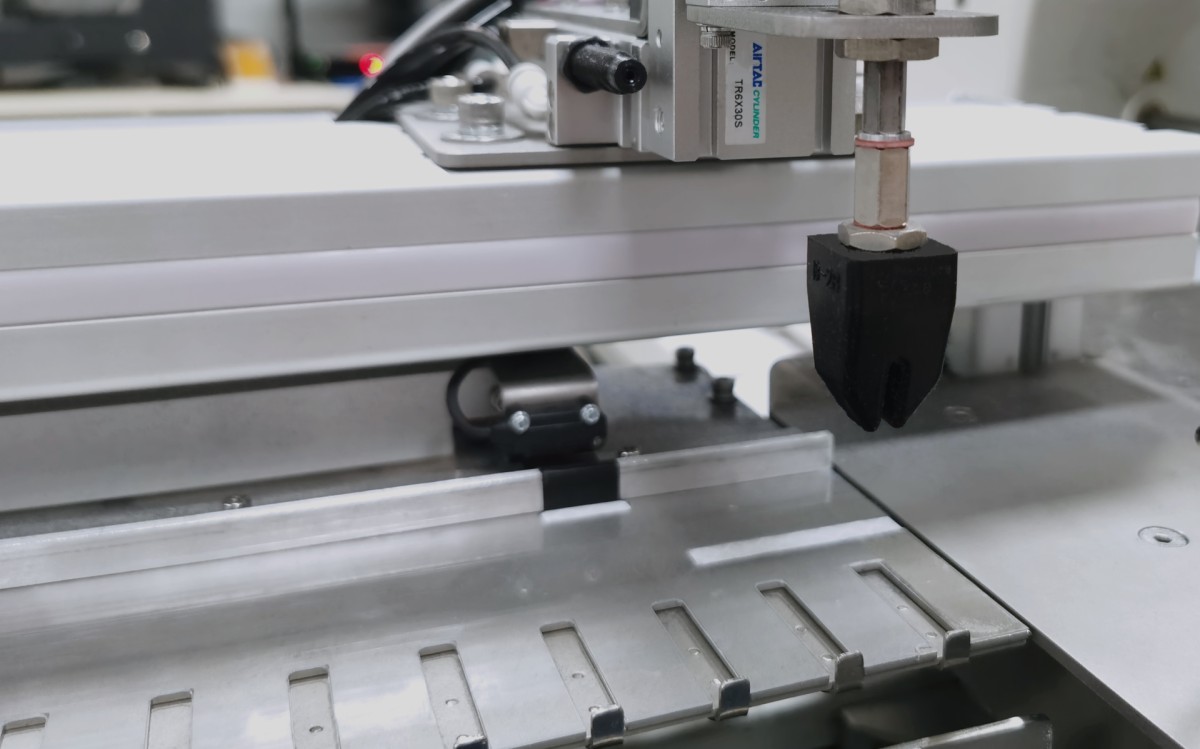

The clamp can be adjusted according to different thick of fabric.

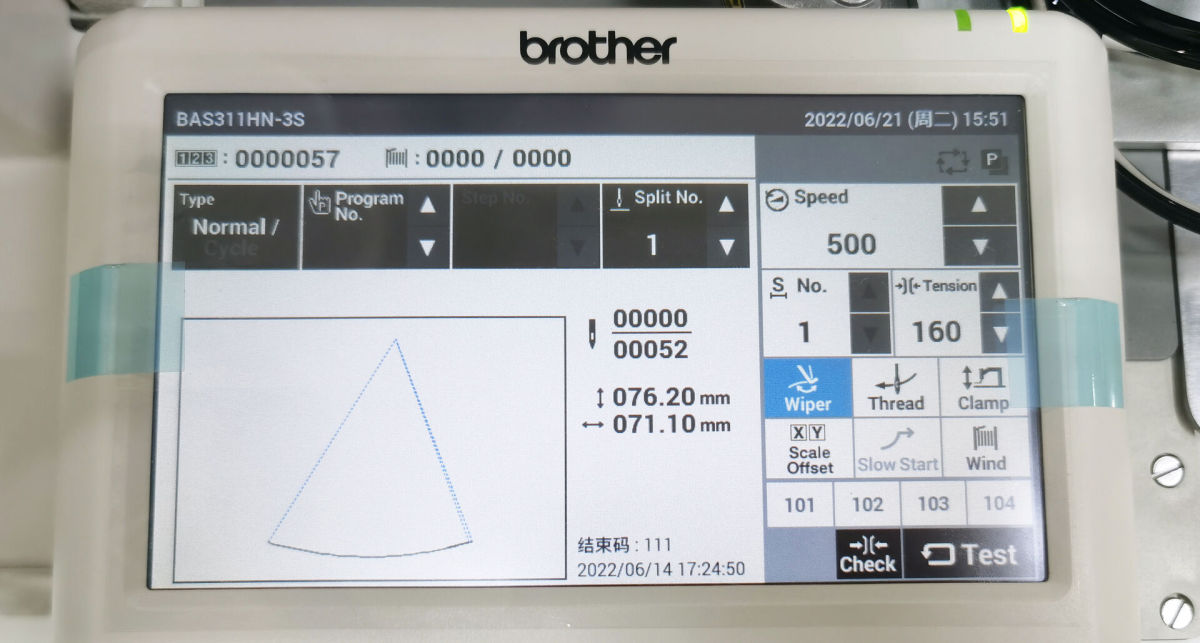

The system automatically calculates the length of fabric.-
